What Is a Butterfly Roof? Structure, Design, and Performance
TL;DR Butterfly roof Summary
A butterfly roof is a V-shaped roof type with two surfaces sloping inward toward the center, resembling a butterfly’s wings. This design enables efficient rainwater collection but can increase the risk of leaks and drainage issues if not properly engineered. Butterfly roofs require precise waterproofing and are best suited for climates with moderate rainfall and robust drainage solutions.
How Butterfly Roof Design Affects Drainage, Snow Load & Performance

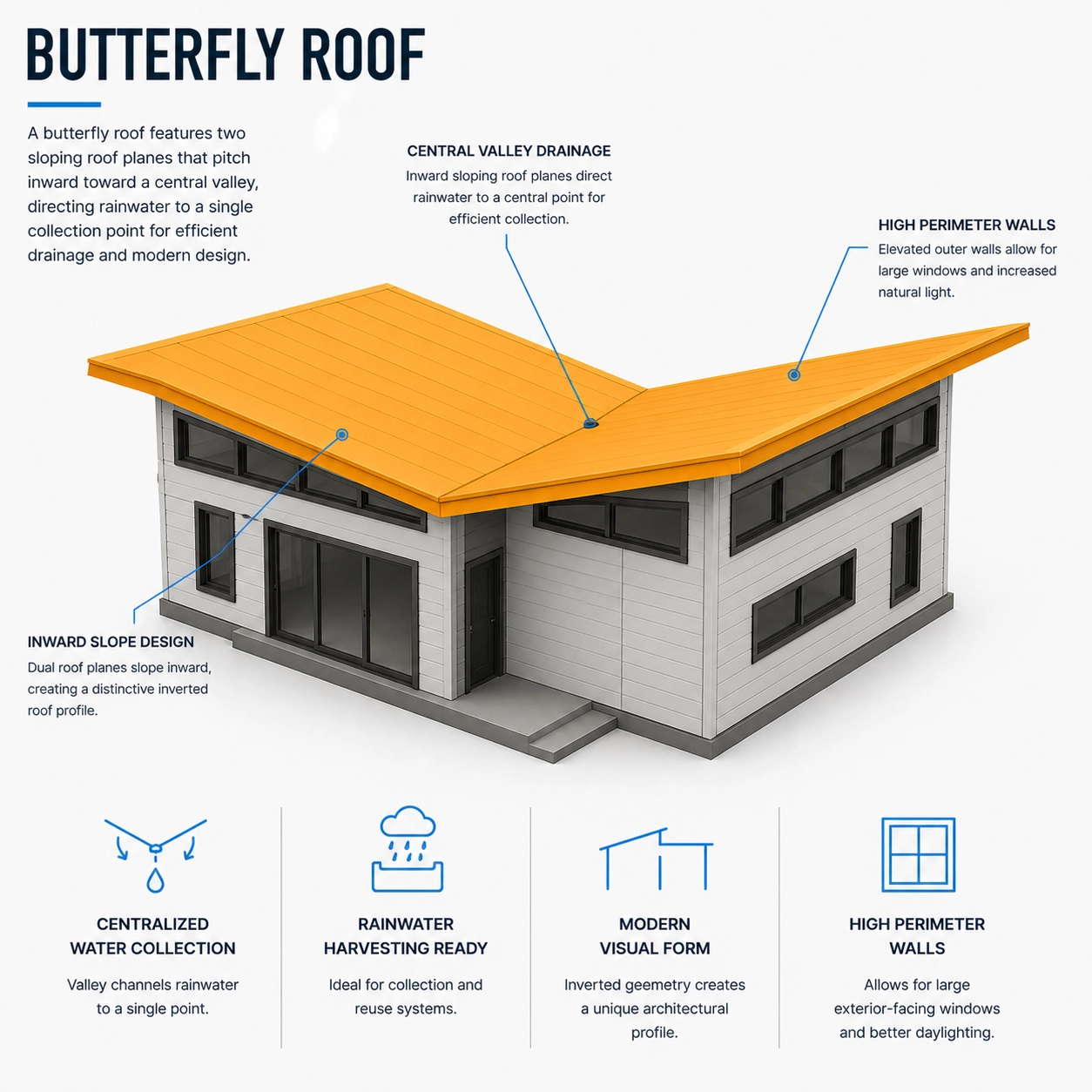

A Butterfly roof is a distinctive roof design characterized by two roof surfaces sloping downward toward the center, forming a central valley that resembles the wings of a butterfly in flight. Unlike traditional gable or hip roofs, the highest points of a butterfly roof are at the eaves, while the lowest point is at the central ridge or valley. This inverted roof pitch creates a V-shaped profile, with the slopes directing water toward the middle of the structure.
Functionally, a butterfly roof is engineered to collect rainwater efficiently at the central valley, making it suitable for rainwater harvesting systems. However, this design requires robust waterproofing and drainage solutions to prevent water pooling and potential leaks. The inward slopes can present challenges for snow shedding, as snow may accumulate in the valley, increasing structural load. Wind resistance is generally moderate, but the open eaves can be vulnerable in high-wind regions if not properly detailed.
Butterfly roofs are often used in modern and mid-century architecture, particularly where maximizing natural light and interior ceiling height is desired. The design allows for larger windows along the eaves and can create additional usable space beneath the elevated roof edges. This roof type is best suited for climates with low snowfall and where water management infrastructure is carefully integrated.
How Butterfly Roof Performance Is Evaluated in Roof Design
Butterfly roof performance is evaluated by examining several critical design and functional factors unique to this roof type. Key considerations include the roof’s inward-sloping geometry, which directly impacts drainage performance and water management. Unlike traditional gable roofs, a butterfly roof channels water toward a central valley, making the design and sizing of internal gutters and downspouts essential for preventing water accumulation and leaks. Roofing professionals assess the adequacy of drainage systems, especially in regions with heavy rainfall, to mitigate the risk of ponding and related butterfly roof problems.
Structural evaluation focuses on the roof’s ability to handle snow load and wind uplift, as the inward slopes can concentrate loads at the valley. Engineers verify that the supporting structure and waterproofing details meet local building codes and climate demands. The suitability of a butterfly roof for modern homes is also judged by its compatibility with insulation, ventilation, and integration with mechanical systems. Cost considerations and the pros and cons of butterfly roof designs are weighed against architectural goals and long-term maintenance requirements. Ultimately, a butterfly roof is classified as high-performing when it demonstrates reliable drainage, structural integrity, and weather resistance tailored to its specific site conditions.
Overview & Key Considerations
What Is Butterfly roof
Why Butterfly roof Matters
Benefits of Butterfly roof
INCREASED INTERIOR DAYLIGHT
The central valley and upward-sloping planes of a butterfly roof maximize natural light penetration into interior spaces.
ENHANCED RAINWATER COLLECTION
The inward-sloping geometry channels precipitation efficiently to a central gutter, optimizing rainwater harvesting potential.
MODERN ARCHITECTURAL AESTHETIC
Distinctive dual-pitch design creates a striking visual profile, supporting contemporary architectural expression and curb appeal.
MAXIMIZED PERIMETER VIEWS
Low perimeter eaves and elevated central ridge allow for larger windows and improved exterior sightlines along building edges.
Limitations of Butterfly roof
DRAINAGE VULNERABILITY
Butterfly roofs concentrate water toward a central valley, increasing risk of ponding, overflow, and interior leakage if drainage fails.
SNOW LOAD ACCUMULATION
The inward-sloping geometry traps snow and ice, imposing higher structural loads and increasing collapse risk in cold climates.
DEBRIS BLOCKAGE RISK
Central gutters and drains are prone to clogging from leaves and debris, leading to rapid water backup and potential roof damage.
WIND UPLIFT SENSITIVITY
The upward-facing slopes can create negative pressure zones, making butterfly roofs more susceptible to wind-driven uplift and damage.
Common Butterfly roof Problems
CENTRAL DRAINAGE FAILURE
Butterfly roof geometry concentrates water at the center, increasing risk of overflow and interior leaks if drains clog.
SNOW LOAD ACCUMULATION
The inward slope of a butterfly roof can trap snow, leading to excessive structural stress and potential collapse.
WIND UPLIFT VULNERABILITY
Upward-facing eaves on butterfly roofs can create negative pressure zones, increasing susceptibility to wind uplift and membrane detachment.
DEBRIS BLOCKAGE RISK
Valley channels in butterfly roofs are prone to debris accumulation, causing drainage obstruction and localized water ponding.
Butterfly roof Quick Facts
Use Cases for Butterfly roof
MID-CENTURY MODERN DESIGN
Butterfly roofs are often specified for mid-century modern homes to achieve dramatic lines and maximize clerestory window placement.
RAINWATER HARVESTING
This roof type is chosen in arid climates where its inward slope efficiently channels rainwater to a central collection point.
URBAN INFILL PROJECTS
Butterfly roofs are used on narrow urban lots to allow higher perimeter walls and increased privacy without sacrificing natural light.
SOLAR PANEL OPTIMIZATION
Designers select butterfly roofs to create optimal south-facing slopes for solar panel installation in sustainable building projects.
